KPI

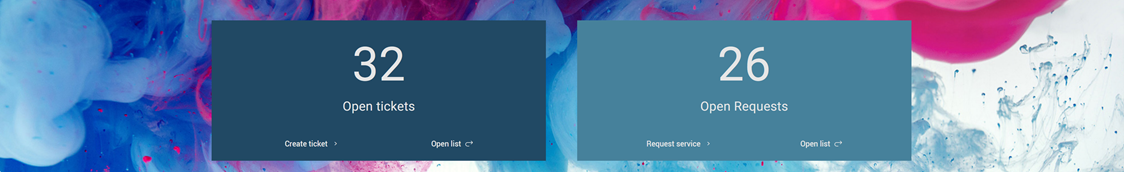

This KPI dashlet type shows one number and a short text.

Notice

The KPI dashlet supports only USU Service Management as resource.

Resource

Target	Add the target URL/path of the resource and define the request method.
Method	`GET` method retrieves data from the specified target `POST` method creates/updates the specified target. The data sent to the target is stored in the Body attribute that is displayed after selecting the `POST` method.
Body Params/Body Edtior	Notice The field is only available when the target method `POST` is selected. Body Params Define a key and value. Click on to add another key and value. Delete a key and value by clicking on the . Body Editor With the body editor you can create/edit the keys and values directly via JSON.

Configuration

Title Language/Translation	Select the language and the corresponding translation of the title. Confirm your entry with Add.
Title styles Font size	Define the font size of the title.
Container styles Background color	Choose a background color using the color picker or define the color as HEX. Note The background color will be overwritten when you use a gradient.
Use gradient	Enable or disable the color gradient using the toggle. If you enable gradient, you have to define the following attributes: Rotation: Define the rotation of the color gradient Color 1/Color 2: Define the two colors for the gradient
Font Color	Define the font color using the color picker.

Tip

You can adjust the size of the KPI using the Page designer > Edit/Create configuration. Add or select the desired KPI dashlet and drag the dashlet to the desired size within the Canvas area.

Actions

To add an action, click on + Add. You have the following configurations available:

Icon	Select a icon. This icon will be shown in front of the label.
Type	Select the appearance of the button: `primary`: The button is highlighted in color. `secondary`: The button has a solid colored frame. `tertiary`: The button is not highlighted.
Label	Select the language and the corresponding translation of the header. Confirm your entry with Add.
Allowed for the following roles	The roles entered define who can see the component/item. You can choose between the available roles via the drop-down menu or add roles manually. To do so type in the name of the role and confirm the entry. Important Roles must be inserted individually and are case sensitive. These two roles are available by default: `usu:portal:USER` `usu:portal:ADMIN` The `ADMIN` role contains the `USER` role.

Button type

Depending on the selected type you have to define additional attributes.

Drawer:
Object ID
Add the Object ID
Drawer width
Define the width of the drawer.
Page ID:
Page ID
Select the portal page using the drop down menu.
New tab: This opens a defined target link in a new tab.
Script produces a runlink to USU Service Management or USU Shop.
Notice
For a runlink it is also possible to use interpolation strings. For example ${[item].[details].[guid]} as part of a Shop runlink.
Current Tab: This opens the defined target link in the current tab.
Action: Used to to address an adapter, for example to trigger the call of a web service.

For Script, New tab, Current tab and Action you have the following attributes available:

Target	Add the target URL/path of the resource and define the request method.
Method	`GET` method retrieves data from the specified target `POST` method creates/updates the specified target. The data sent to the target is stored in the Body attribute that is displayed after selecting the `POST` method.
Body Params/Body Edtior	Notice The field is only available when the target method `POST` is selected. Body Params Define a key and value. Click on to add another key and value. Delete a key and value by clicking on the . Body Editor With the body editor you can create/edit the keys and values directly via JSON.

In this section:

Object ID	Add the Object ID
Drawer width	Define the width of the drawer.
